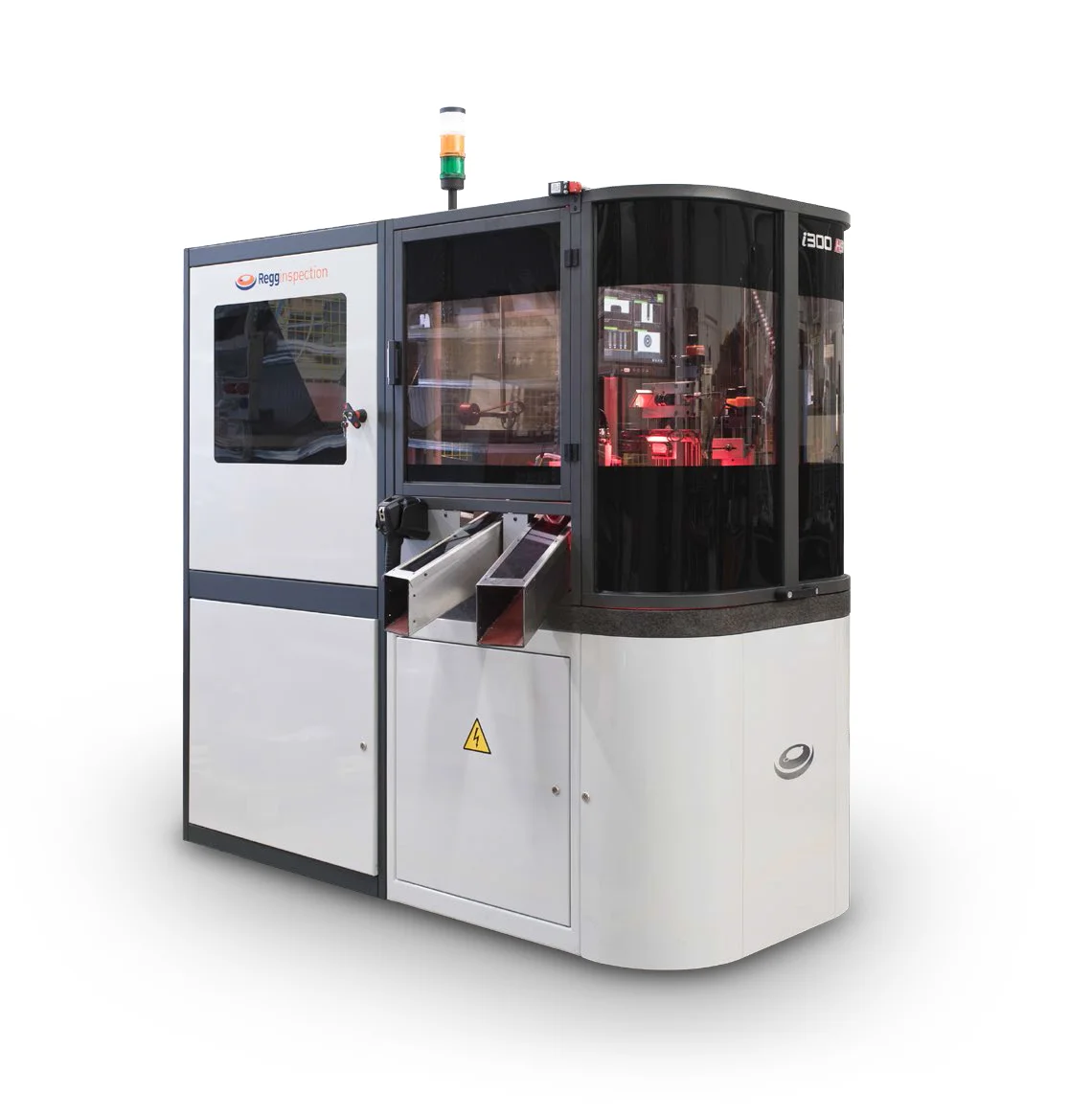

i300 Series

The i-300 machine series has been design for fast and accurate vision inspection needs. Main features are:

  • Latest vision technologies
  • Up to five (5) high resolution cameras for the most comprehensive part inspection
  • Patented 360 degree thread integrity control
  • Easy and fast set up and change over design
  • Easy and intuitive Man Machine Interface (MMI) both for operators and programmers
  • Teleservice module for easy and fast intervention
  • Fully Integrated feeding system for smooth and fast inspection
  • Offloading on chute, conveyors, packaging systems.
Machine Specifications i300 i300-HS i300-G
Min/Max Dia. (mm) M2.5 - M12 M2.5 - M12 1-32
Min/Max Length (mm) 3-100 3-100 1-24
Max camera number 5 5 5
Mechanical controls
Eddy current control
Hardness y/n
Table Type Steel Steel Glass
Max Speed (pcs/min) 450 650 300
Dimension (mm) 950x1000x2000
Weight (kg) 350
