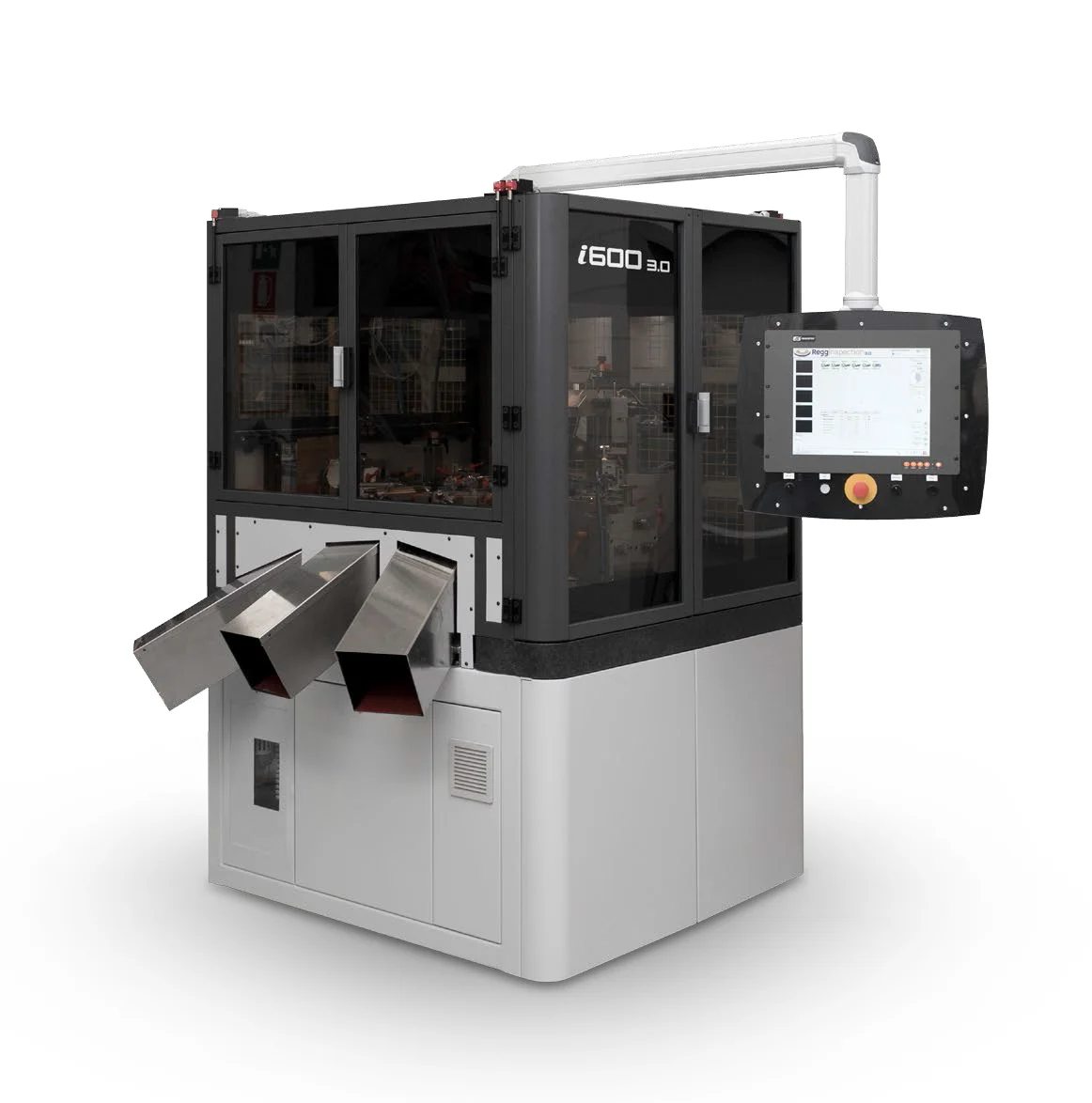

i600 Series

The i-600 machine series has been design for the most comprehensive inspection needs. Main features are:

  • Two (2) tier granite base foundation for strength and stability, makes it the most robust machine in the industry

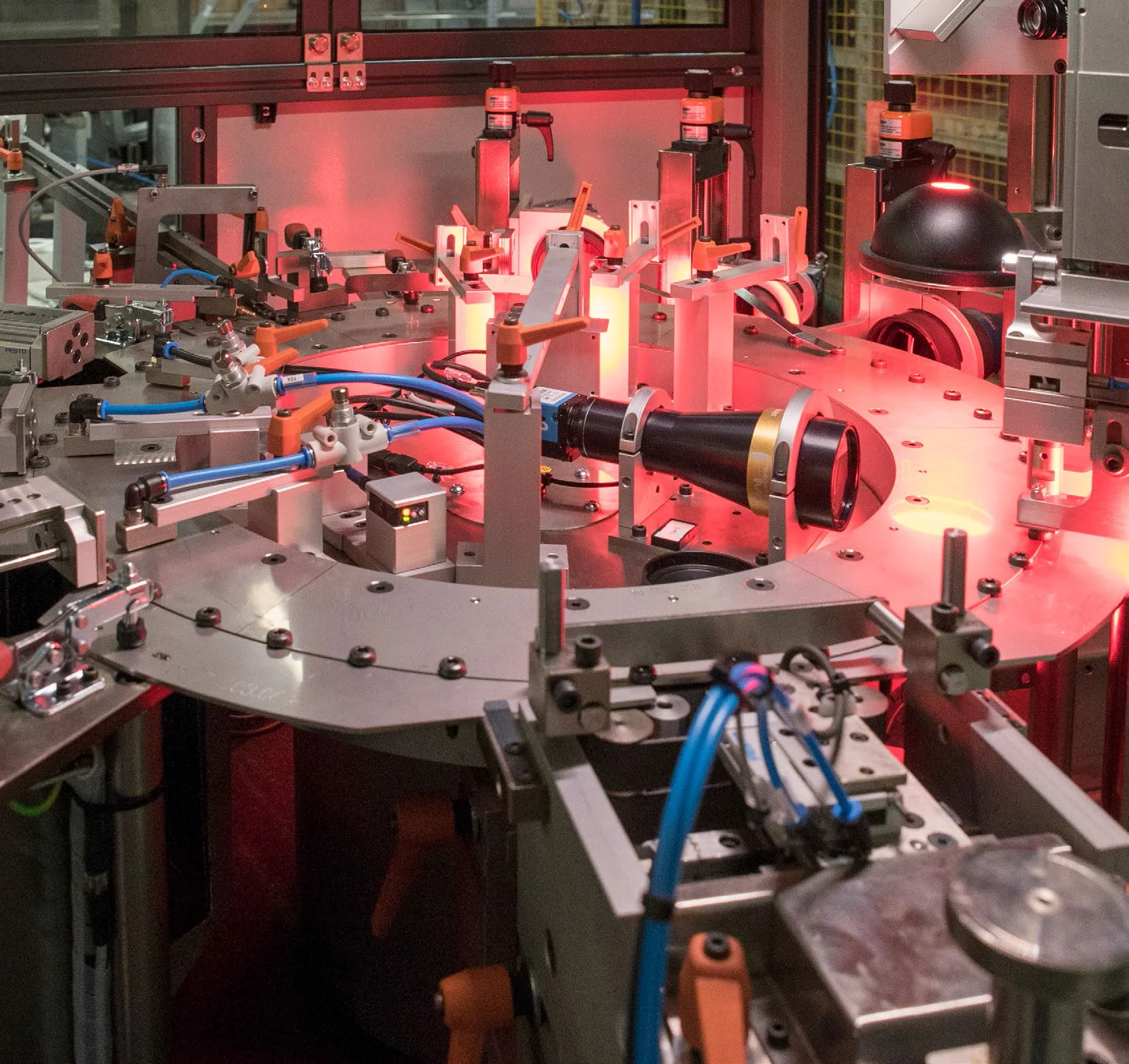

  • Wide rotary table for fast and accurate inspection for up to eight (8) inspection modules
  • Three (3) programmable exit chutes
  • Latest vision technologies
  • Up to five (5) high resolution cameras
  • Patented 360 degree thread integrity control
  • Patented mechanical recess control
  • Non-visible Crack Control with Eddy current
  • Easy and fast set up and change over design
  • Easy and intuitive Man Machine Interface (MMI) both for operators and programmers
  • Teleservice module for easy and fast intervention
  • Fully Integrated feeding system for smooth and fast inspection
  • Offloading on chute, conveyors, packaging systems.
i600 i600-L i600-M i600-N i600-G
Components Small fasteners Medium/Large fasteners (M4-M12) Mechanical components Nuts (M4-M12) Nuts/Washers (M4-M20)
Min/Max Dia. (mm) 4-45 4-45 2-70 6-32 6-50
Min/Max Length (mm) 6-160 12-250 3-160 - 2-24
Max Camera number 5 4
Mechanical controls
Laser controls
Eddy current control
Max Speed (pcs /min) 500 500 120 250 250
Dimension (mm) 1.500 x 1.500 x 2.200
Weight (kg) 1400
