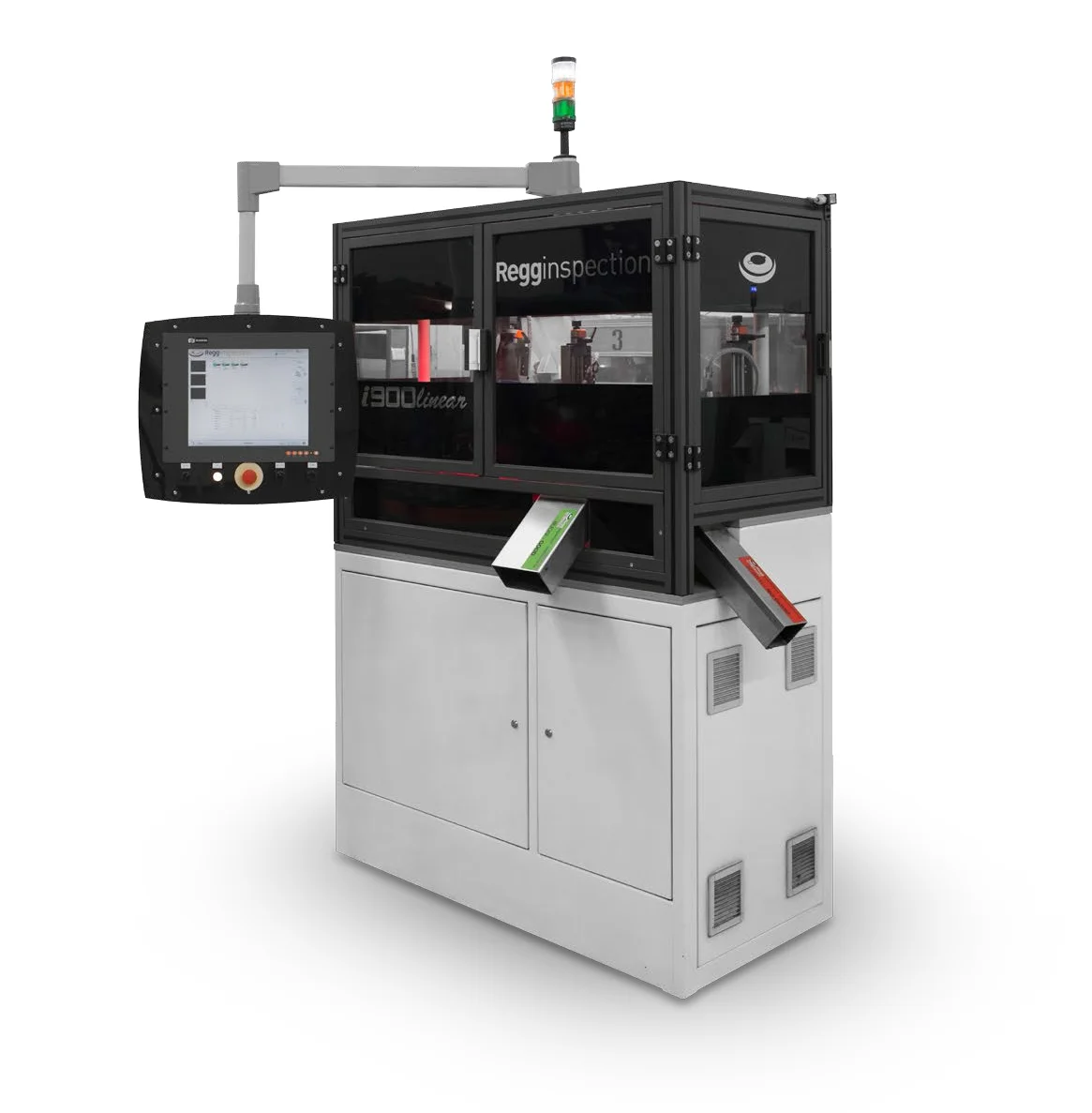

i900 Linear Series

The i-900 Linear machine series has been design for fast and accurate vision inspection needs of flat or headless parts. Main features are:

  • Latest vision technologies
  • Up to four (4) high resolution cameras for the most comprehensive part inspection
  • Easy and fast set up and change over design
  • Easy and intuitive Man Machine Interface (MMI) both for operators and programmers
  • Teleservice module for easy and fast intervention
  • Fully Integrated feeding system for smooth and fast inspection
  • Offloading on chute, conveyors, packaging systems.
Machine Specifications i900 Linear
Min/Max Dia. (mm) 10-40
Min/Max Height. (mm) 2-30
Max camera number 4
Max Speed (pcs/min) 400
Dimension (mm) 900x1700x2200
Weight (kg) 300
